Mobile Continuous Mixer ST300
Mobile continuous mixer is a kind of crawler-type mobile mixing equipment that can adapt to various harsh working conditions and can complete the mixing of various materials. For example, cement stabilized soil mixing, as well as various contaminated soil purification and disinfection treatments. The whole machine is equipped with a diesel power system and a crawler walking system capable of traversing various ground conditions. It is a fully hydraulically driven mechanical equipment.

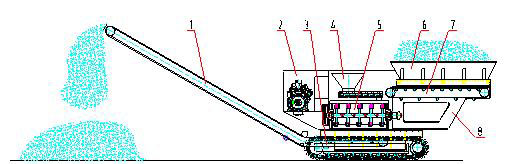

| System Structure of mobile continuous mixer ST300 |
|---|
 |
| The mobile mixer consists of a discharge belt conveyor 1. a power system 2. a crawler walking system 3. an additive material distribution system 4. a stirring pot system 5. a main silo 6. a metering belt conveyor system 7. a frame system 8. a hydraulic system And digital electronic control system, walking control adopts remote control. |
| Parameters | Mobile continuous mixer ST300 |
|---|---|
| production capacity | 300 t/h |
| mixing pot capacity | 0.3m3 |
| engine power | 169Kw/2200rpm |
| engine model | Cummins QSB8.3-C230, Meet the third stage emission standard of diesel engine |
| Machine working weight | 28t |
| Machine Transport weight | 22t |
| Walking Speed | 3.6Km/h |
| Belt conveyor width | 800mm |
| Hydraulic tank volume | 200L |
| Diesel tank volume | 400L |

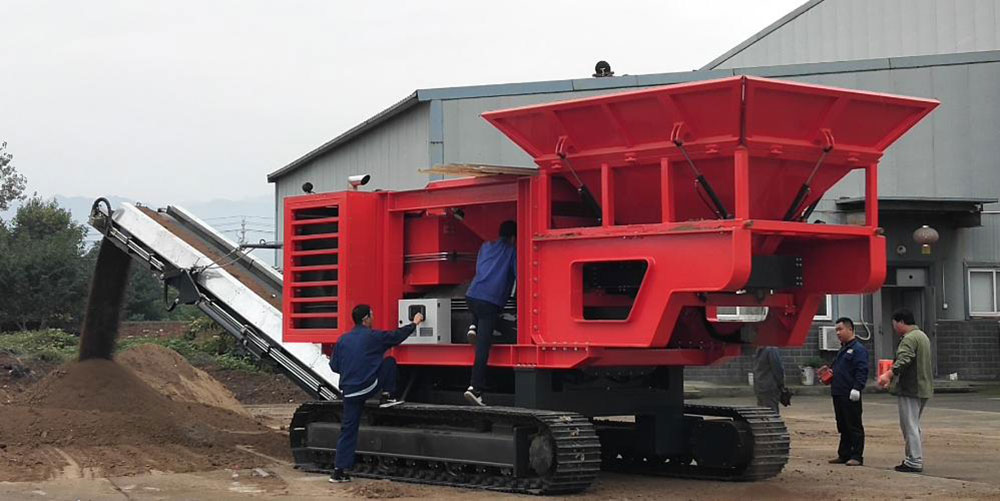

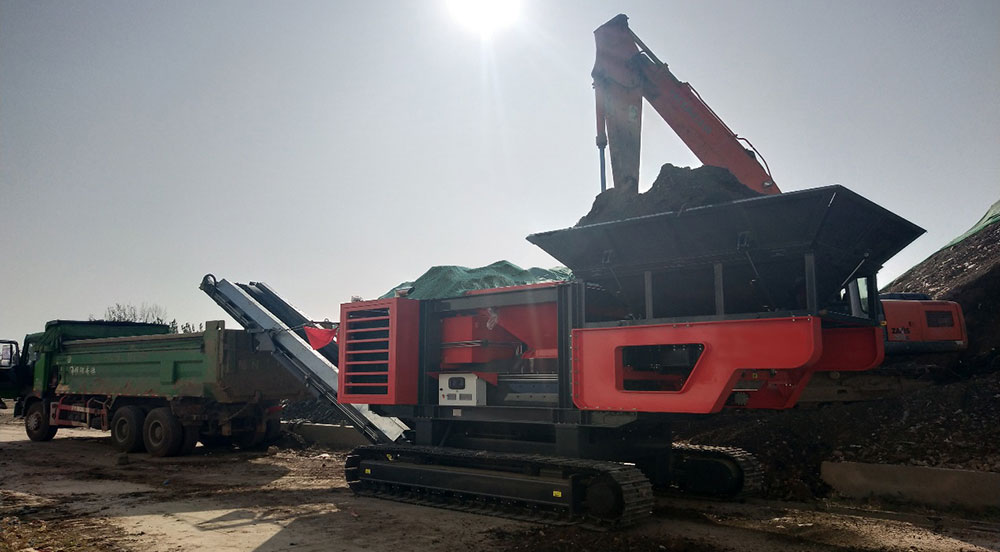

Mobile continuous mixer ST300 work site
