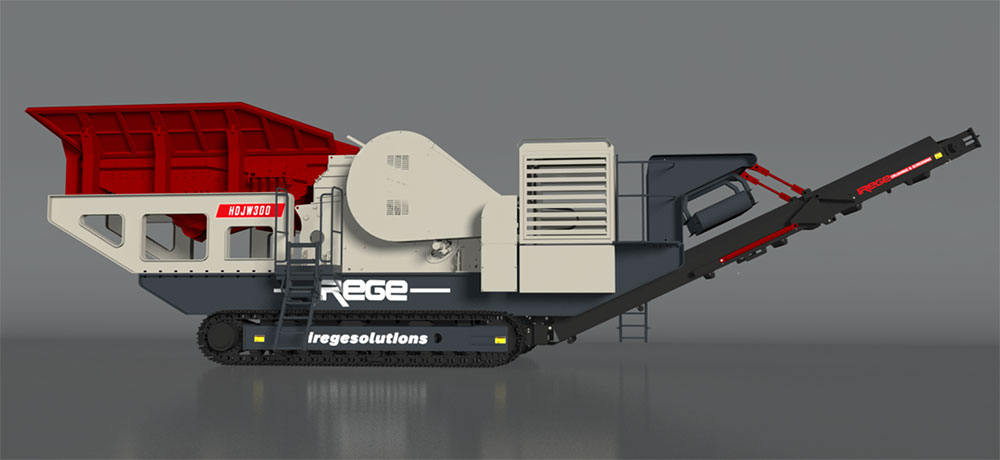

Mobile Jaw crusher, Mobile Full Hydraulic Jaw Crushing Plant

Technical Parameters	HDJC300 Mobile Full Hydraulic Jaw Crusher
Jaw Crusher
Jaw Crusher Type	ME116
jaw crusher inlet size mm	1150×800
jaw crusher inlet weight t	21.5
jaw crusher drive	Diesel engine + clutch direct drive
jaw crusher production capacity t	250@CSS100, 320@CSS125, 380@CSS150
jaw crusher feed size mm	小于650
jaw crusher outlet adjustment	hydraulic
feeder
Bar type vibrating feeder model	MM1048
Rod type vibrating feeder drive mode	hydraulic
Feeding capacity t	350
Hopper volume m³	8
Discharge belt conveyor
Outlet belt size (length × width) mm	11000×1000
Discharge belt conveyor drive mode	hydraulic
Discharge height mm	3500
Scrap belt conveyor
Belt size (L×W) mm	7000×600
drive mode	hydraulic
discharge height mm	3000
Iron remover
Size of iron remover (length x width) mm	1900×800
Iron remover drive	hydraulic
power system
engine model	Cummins QSZ13-C525，Water-cooled, six-cylinder in-line
Engine rated power Kw	386@2100rpm
engine power take-off	Transfer case + hydraulic clutch + hydraulic pump (3 hydraulic systems)
Track size (L×W×H) mm	5000×500×830
Crawler drive	hydraulic
Tracked chassis walking speed Km/h	1.2
Walking system control mode	Handheld Wireless Remote
Machine technical parameters
Machine working weight t	48
fuel tank volume l	800
hydraulic Fuel tank capacity l	350
Electrical system voltage V	24
Control operate	CAN bus technology, digital display, intelligent control
Working dimensions (length × width × height) m	15×3.2×4
Shipping Dimensions (L×W×H) m	12.5×3.2×3.5

1. The crawler-type mobile crushing station products are light in weight and small in size, especially suitable for work in narrow fields;
2. Convenient transportation, crawler walking, no damage to the road surface, equipped with multi-functional attachments, and a wide range of adaptability;
3. It integrates process equipment such as receiving, crushing, and conveying. Through the optimization of the process flow, it has excellent crushing performance for rock crushing, aggregate production and open-pit mining. Through the combination of different models, Form a powerful crushing operation line to complete multi-demand processing operations;
4. The whole machine adopts all-wheel drive, which can realize in-situ steering, standard configuration, quick-change device, with perfect safety protection function, especially suitable for narrow and complex areas;
5. Save fuel, the fuel saving rate is up to 25%;
6. Random attached power group-optimized design;
7. It can work uphill to meet the crushing requirements of mines, hydropower stations, coal mines and other projects

1. The mobile screening and crushing equipment has the characteristics of multi-function operation; narrow field work;
2. It is widely used for coarse crushing of hard materials at mining sites in mines, coal mines and cement industries; narrow field work;
3. Recycling of construction waste, work on earthworks, urban infrastructure, roads or construction sites; work on narrow sites;
4. Handling of topsoil and various other materials; separation of cohesive aggregates; construction and blasting industries; screening after crushing; narrow field work;
5. Peeling crushing for cement concrete road reconstruction, crushing before asphalt concrete regeneration
