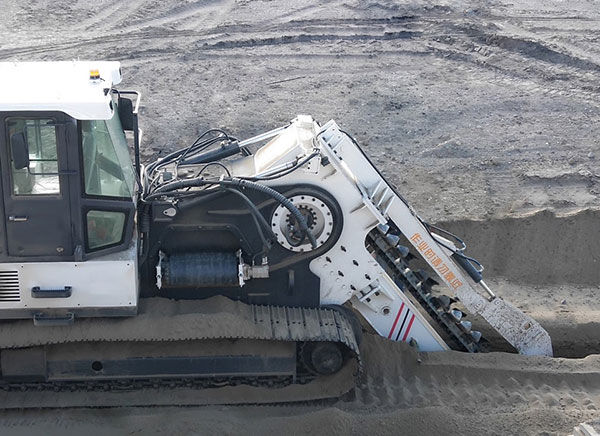

TR60 trenching machine for railway, tele-communication, gas pipeline and agriculture projects.

Engine
Engine Model	Cummins QSB6.7-C260-III
Engine Power	169Kw/2050rpm
Max fuel consumption	42L/h
Diesel tank volume	450L
Air Filter	Dry two-stage filtration with precleaner

Trenching system
Type	Chain slat buckets
Driving	Fully hydraulic
Tool type	bullet knife
Linear velocity	4m/s
Trenching width	300mm - 600mm
Trenching depth	800mm - 1800mm

Discharge system
structure type	Belt conveyor system
Belt width	650mm
Belt length	2500mm
Capacity	690mm³/h
Discharge direction	Belt returnable, both sides available

Track system
Type	Crawler
Width	600mm
Dimension	4300mm(l)×600mm(w)×730mm(h)
Speed	During work 0 - 30m/min Transport 0 - 3.5km/h
Max entry angle	30°
Max departure angle	25°

Hydraulic system
(1) 4 independent hydraulic drive systems; (2) Left-travel hydraulic system and right-travel hydraulic system, two closed systems, hydraulic pilot proportional control; (3) Excavation hydraulic drive system, closed hydraulic system, electro-hydraulic proportional control; (4) The hydraulic drive system and auxiliary hydraulic system of the discharge belt conveyor, and the load-sensitive open hydraulic system; (5) The volume of the hydraulic oil tank is 290L.

Hydraulic system

(1) 4 independent hydraulic drive systems;
(2) Left-travel hydraulic system and right-travel hydraulic system, two closed systems, hydraulic pilot proportional control;
(3) Excavation hydraulic drive system, closed hydraulic system, electro-hydraulic proportional control;
(4) The hydraulic drive system and auxiliary hydraulic system of the discharge belt conveyor, and the load-sensitive open hydraulic system;
(5) The volume of the hydraulic oil tank is 290L.

Control System
(1) System supply voltage: 24V; (2) Main control original: main controller and 7-inch color display; (3) CAN-bus bus control, consisting of CAN-open protocol and CAN-J1939 protocol; (4) It can realize intelligent control and fault alarm and diagnosis; (5) Automatic adjustment of Engine power can be realized; (6) Automatic leveling function of upper frame, maximum leveling angle ±10°。

Cab - Shipping Dimensions and Weights
cab	(1) With air conditioning and heating functions; (2) Air purification system
Shipping dimensions and weight	(1) Shipping size: 8800mm(L)×2500mm(W)×3050mm(H); (2) Shipping weight: 19t

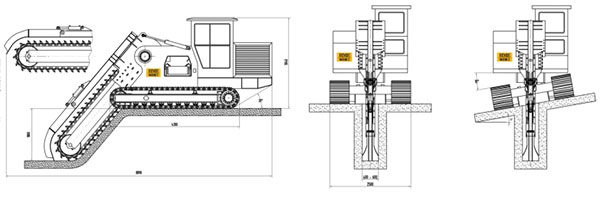

Parametric drawings
