Track mobile sand crusher, moble sand maker, sand making plant

Track Mobile Sand Crusher Applications

Applications：suitable for river gravel, granite, basalt, iron ore, limestone, kaolin fine crushing.。

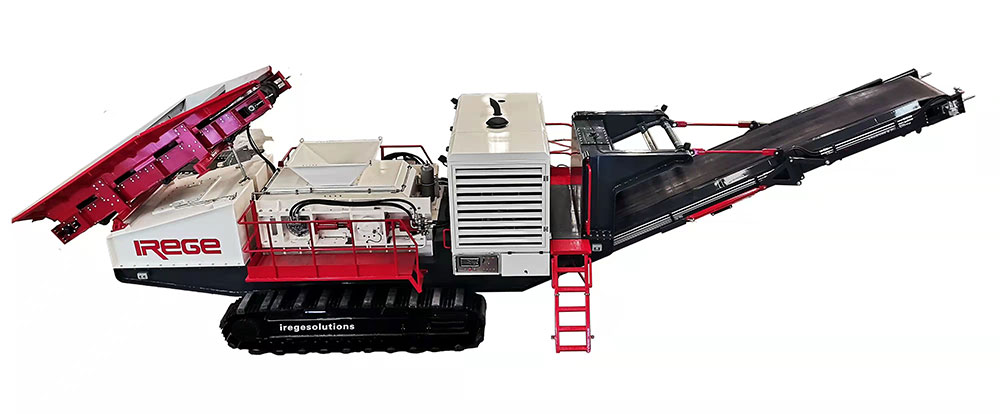

Track Mobile Sand Crusher

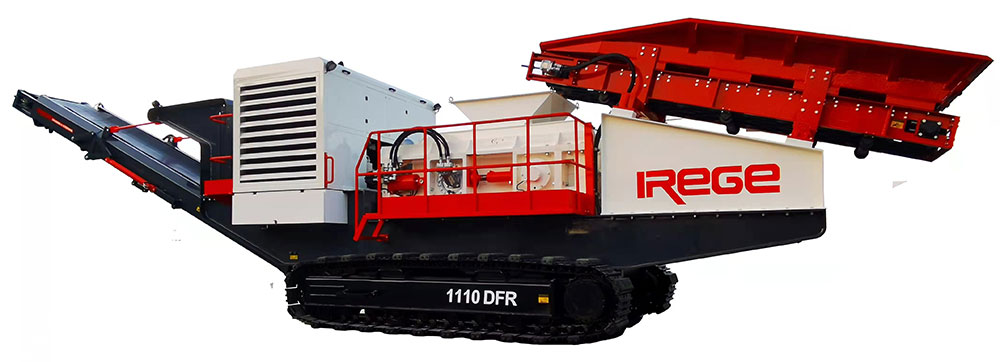

Track Mobile Sand Crusher 1110DFR	Technical Parameters
Capacity t/h	80-150
Engine
Manufacturer	Weichai/Cummins
Type	WP10/QSL8.9-C360
Cooling /cylinders	Water /Straight-six
Rated power kw/Hp	266/361,264/360
Rated speed rpm	2200/2100
Fuel tank L	600
Whole machine
Driving speed km/h	0～1.8
Tack type	Double tracks, independent control
Track dimension(L×W×H) mm	4330×500×740
Working weight kg	30000
Working size(L×W×H) mm	14600×3050×3560
Transport size(L×W×H) mm	10500×3050×3020
Main crusher
type	Double roller crusher
Driving method	Fully hydraulic, Electro hydraulic proportional stepless speed regulation
Roller size(D×B) mm	1100×1000
Feeding & discharge system
Feeding belt(L×W×H) mm	3000×1120×460
Belt width mm	800
Discharge belt(L×W×H) mm	11000×1120×460
Belt width mm	1000
Discharge height mm	3500
Control system
Control way	CAN-bus
Electrical voltage V	24
On board control	PLC panel
Wireless control	Industrial control box

Track Mobile Sand Crusher 1110DFR-Advantages

1. Specially designed for hard rock, the crushing pressure is twice that of the ordinary pair of rollers; the crushing ratio is large, and the output is 30% higher than that of the ordinary pair of rollers; the feeding belt is infinitely adjustable in speed, which can adapt to the crushing requirements of different materials;
2. The structure of the crushing machine is simple, the sand grains are full, and the particle size distribution is uniform; the over-grinding phenomenon is less, and the powder content of the sand is low, which can be controlled within 10%; It will not distribute too much in the particle size of 0-1mm and >3mm like impact breaking;
3. Compared with the 30%-35% of other machines, the one-time yield of the double-roll hydraulic sand making machine can reach more than 80%; after shaping, the yield can reach 100%, and the grain shape can reach the tower. The same level of sand making;
4. The operation is safe and stable, the loss is extremely low, there are almost no wearing parts, and the operating cost is the lowest among all sand making methods;
5. Full hydraulic system, integrated hydraulic spring, equipped with balance flashback protection, which can effectively protect the main engine when passing iron;
6. Equipped with hydraulic adjustment top pressure system, the pressure can be adjusted through PLC, and equipped with hydraulic accumulator to resist impact;
7. Special patented technology roller, special high wear-resistant material ratio. Thickening treatment is done on the contact part of the material, the service life is extended, the continuous working time is long, and the operating cost is extremely low;
8. The world's leading full hydraulic working system. The hydraulic system of the whole vehicle is the overall design of the world's top hydraulic engineers, the system is stable and reliable, and the hydraulic motor and hydraulic pump adopt reliable international imported brand products;
9. The vehicle control adopts the CAN-BUS driving computer control system of the same level as the family car. The whole machine is equipped with multiple sets of sensors, the machine operation data can be displayed on the touch screen of the control cabinet in real time, and the machine setting parameters can be adjusted in real time through the PLC touch screen;
10. Remote control technology greatly improves operability, safety and convenience.
