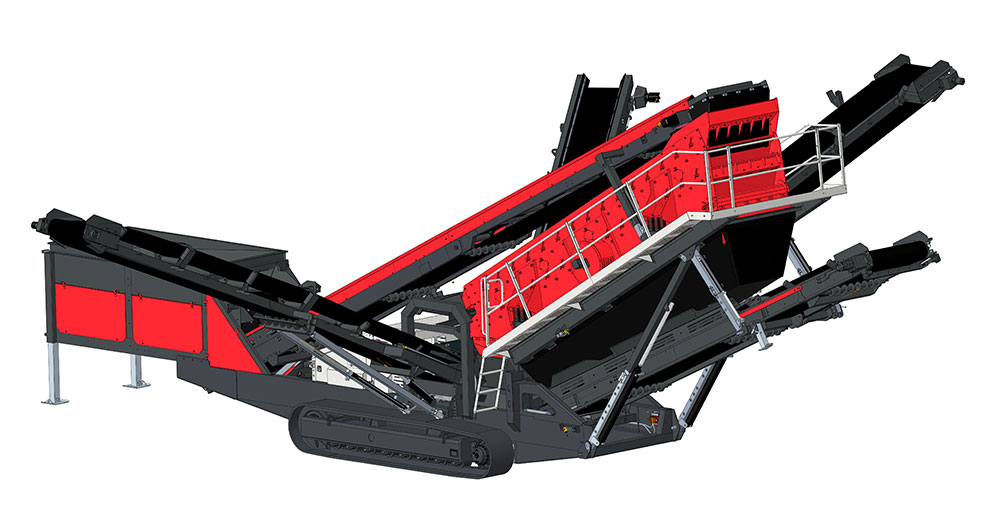

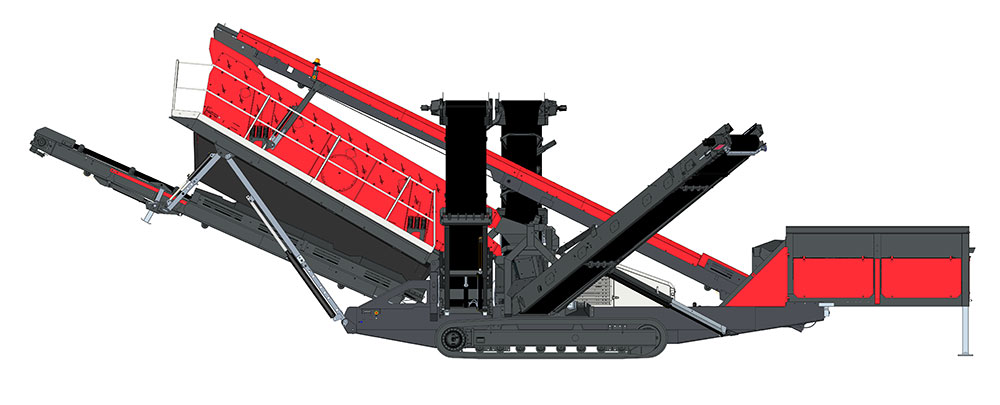

Aggregate Screen
The AS1560 aggregate screen could sieve 4 final products according to customer demands, it is usually combined with different types of crushers.
| Technical parameter | ||
|---|---|---|
| Feeder | motor | 160cc |
| belt speed | 0.32m/s | |
| belt width | 1200mm | |
| belt drum diameter | 350mm | |
| Loading belt | motor | 500cc |
| belt speed | 1.9m/s | |
| belt width | 1050mm | |
| belt drum diameter | 290mm | |
| Coarse product belt | motor | 500cc |
| belt speed | 1.52m/s | |
| belt width | 650mm | |
| belt drum diameter | 290mm | |
| Discharged height | 4300mm | |
| medium big product belt | motor | 500cc |
| belt speed | 1.52m/s | |
| belt width | 800mm | |
| belt drum diameter | 290mm | |
| Discharged height | 4000mm | |
| medium product belt | motor | 500cc |
| belt speed | 1.52m/s | |
| belt width | 800mm | |
| belt drum diameter | 290mm | |
| Discharged height | 4000mm | |
| fine product belt | motor | 800cc |
| belt speed | 1.67m/s | |
| belt width | 1200mm | |
| belt drum diameter | 290mm | |
| Discharged height | 4200mm | |
| screen | motor | 90cc |
| speed | 960rpm | |
| vibrating frequency | 7mm | |
| transportation size | 18.45m*3*3.6m | |
| total weight | 35000kg | |
