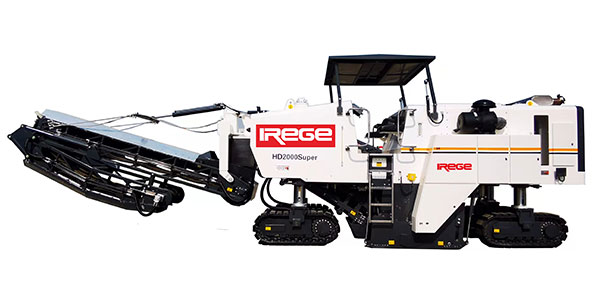

Road Milling Machine
The Irege series road milling machine is a high-performance milling machine with a number of patented technologies and complete intellectual property rights independently developed by the company's team. The equipment could be applied to extremely harsh working conditions.
The asphalt milling machine also known as a cold milling machine, cold planer, pavement planer, pavement recycler, or roto-mill - is a construction machine used to remove bituminous pavement or asphalt concrete from roadways. The result is a somewhat rough but even surface that can immediately be opened to traffic.
Efficient milling and granulating of road pavements
Cold milling machines are used for the quick, highly efficient removal of asphalt and concrete pavements. In doing so, they create an even, true-to-profile base for the construction of new surface courses of uniform layer thickness. In addition, milling individual pavement layers enables the material to be reclaimed in a selective process and separated into the different mix types.
Cold milling has gained acceptance worldwide, and it is unrivalled when it comes to economic efficiency and environmental sustainability. Based on our unparalleled experience and expertise in milling technology, we are continuously broadening the range of applications of our cold milling machines. As the leader in innovation, IREGE can be relied on to always provide answers to challenging application requirements, frequently cooperating with customers to develop productive solutions in line with field requirements.
| Model | HD50S | HD1000M | HD1200 | HD2000M | HD2000Super |
| Milling width (mm) | 500 | 1150 | 1200 | 2000 | 2000 |
| Milling depth (mm) | 0-150 | 0～250 | 0～250 | 0-320 | 0-320 |
| Milling tooth (pcs) | 54 | 96 | 96 | 162 | 162 |
| Drum diameter(mm) | 900 | 900 | 980/1060 | 1060 | |
| Engine | Cummins | Cummins | Cummins | Cummins | Cummins |
| Engine type | QSC3.8-C80 | QSC8.3-C220-Ⅲ | QSZ13-C525 | QSZ13-C525 | QSX15-C600 |
| Cooling/cylinder | Water colling/straight six | ||||
| Power kw/hp | 60 | 162/220 | 386/525 | 448/600 | |
| Rated speed rpm | 2400 | 2200 | 2100 | 2100 | 2100 |
| Driving speed km/h | 0-6 | 0～6.4 | 0～5.6 | 0-5.6 | 0-5.6 |
| Working speed m/min | 0-35 | 0～35 | 0～30 | 0～30 | 0-30 |
| Tire/track dimension(D×W)(mm) | Φ540×220 | Φ660×250 | 1670×300×640 | 1670×300×640 | 1720×300×650 |
| Working weight kg | 7000 | 15600 | 15600 | 32000 | 36000 |
| Fuel tank volume L | 160 | 500 | 500 | 1000 | 1000 |
| Hydrulic oil tank volume L | 80 | 200 | 200 | 320 | 320 |
| Water tank volume L | 600 | 1000 | 1000 | 3300 | 3300 |
| Electronic system voltage V | CAN-BUS | ||||
| Discharge belt width (mm) | 500 | 500 | 800 | 800 | |
| Max discharge height (mm) | 3800 | 4800 | 4800 | 4800 | |
1. Advanced control system
- Adopt world-class quality engineering machinery special controller assembly, based on CAN-bus network control system, the whole machine has the following special functions:
- Fully automatic control and working condition monitoring of the road milling operation process;
- Automatic adjustment and distribution of engine power during road milling operation
- Intelligent steering control, which can provide the choice of five steering modes: front wheel, rear wheel, crab line, all wheel and manual;
- Fully automatic leveling and depth of cut control;
- Flexible system control parameter setting and system sensitivity adjustment setting;
- Real-time fault diagnosis and recording of the power system, hydraulic system and electronic control system of the whole machine;
- The graphical display interface makes the operation of the machine more intuitive, convenient and easy;
- The control system adjusts the fuel supply of the engine in real time according to the actual power demand of the milling operation to save fuel and reduce exhaust emissions.
2. Efficient milling work performance
- The independent patented hydraulic transfer case and clutch provide high power and reliable output, and can be completed at one time when the cutting depth is above 300mm;
- The unique cooling air duct design of the machine increases the cooling efficiency by 30%;
- The heavy weight design of the machine provides enough pressure to the milling cutter;
- Balanced machine weight distribution, providing evenly distributed pressure distribution, providing better grip to the track;
- The automatic distribution of engine power achieves the highest machine utilization rate and improves work efficiency;
- The streamlined operation process can quickly realize the operation.
3. Easy maintenance
- Reasonably optimized layout space, reserved maintenance and repair channels and spaces;
- The single-side power output of the engine (transfer case + clutch) reserves more equipment space;
- Machine fault automatic monitoring system, which can be read directly through the display screen.
